104KW Pulp Egg Box Making Machine / Waste Paper Egg Tray Machine

Place of Origin : CHINA

Brand Name : HONGRUN

Automatic Grade : Automatic

MOQ : 1SET

Price : negotiation

Packaging Details : Standard Export Packaging

Delivery Time : About 75 days

Payment Terms : T/T, L/C

Supply Ability : 100SETS PER YEAR

Certification : ISO9001, CE, SGS, BV, TUV

Model Number : HRZ-4000M

Voltage : 220V50HZ/380V50HZ

Condition : New

Capacity : 4000-4500pcs/hr

Raw material : Recycled paper

Type : full automatic rotary type

Processing type : Pulp Molding Machine

After-sales service provided : Field installation,commissioning and training

Color : customer requests

Power(w) : 104KW

Product type : Egg Tray Machine

Drying type : metal multi-layer dryer

Fuel type : gas or oil, wood, coal, biomass, electricity

Contact Now

Advanced Processing Pulp Egg Box Making Machine Waste Paper Egg Tray Machine

Description For Egg Tray Machine

  1. 8 face rotary egg tray machine applicable to a large number of production factories.
  2. Fully automatic 8 surface equipment advantages: equipment operation safety, machine main to the quality of paper support, save the staff.
  3. It can produce egg cartons, egg box, egg tray, bottle holder, agricultural culture fruit tray, coffee cup, tray.
  4. The product can be recycled, is a new green packaging, is not only the development of environment-friendly enterprise, also long get rich choice.

Details of machines

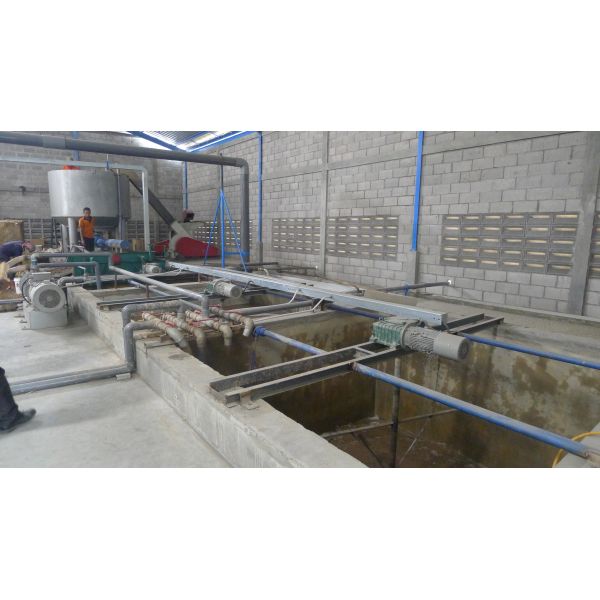

1. Pulping system

104KW Pulp Egg Box Making Machine / Waste Paper Egg Tray Machine

2. Molding system

104KW Pulp Egg Box Making Machine / Waste Paper Egg Tray Machine

3. Drying system

104KW Pulp Egg Box Making Machine / Waste Paper Egg Tray Machine

4. Packing system

104KW Pulp Egg Box Making Machine / Waste Paper Egg Tray Machine

Technical Data Of Egg Tray Machine

Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)
Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.
Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

 LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container Whole production line

The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas, considering this, our company developed many pulp molding production lines in different specifications to meet the customer's requirements:
HR-1000S, HR-1500S, HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-6000M, HRD-12000M.
The above-mentioned production lines are suitable for the following products: Egg tray (30-cell, 20-cell etc.), egg box/carton
(6-cell, 10-cell, 12-cell, 15-cell, 18-cell etc.), fruit tray (for apple, tomato, pear and etc.), cup carrier (4 packed and 2 packed),
some medical-care products and fixed shape (the design doesn't change frequently) pulp molding products with large quantity.

For 30-cell egg tray as the example:
Model Throughput Drying System Workshop Space Rated Power
HR-1000S 1000pcs/h Single-Layer Metal 40m*10m*6m 88KW
HR-1500S 1500pcs/h Single-Layer Metal 42m*10m*6m 122KW
HRZ-2000M 2000pcs/h Multi Layers Mental 30m*10m*6m 160KW
HRZ-3000M 3000pcs/h Multi Layers Mental 30m*10m*6m 187KW
HRZ-4000M 4000pcs/h Multi Layers Mental 35m*10m*6m 206KW
HRZ-6000M 6000pcs/h Multi Layers Mental 38m*15m*6m 327KW
HRP-8000M 8000pcs/h Multi Layers Mental 35m*20m*6m 470KW
HRD-12000M 12000pcs/h Multi Layers Mental 45m*20m*8m 477KW
  • Exact data are subject to final contract.

After-sales Service

  1. Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.
  2. Our company keeps its contract and reputation. Quality first, products guarantee a year, as it is a quality problem, free replacement.
  3. For every purchase of our company's products, the company can send technicians to guide the installation and debugging and can undertake the design of process and equipment installation.
  4. Our company ensures that supply of parts discount all the year round.
